PRBs are most known and associated with the treatment of contaminated groundwater. Groundwater is redirected or funneled through a permeable treatment or reactive zone that contains materials that will sorb or react with contaminants only allowing ‘clean’ water to exit the gate. When low-permeability materials are used to direct groundwater flow, this is often referred to as a Funnel & Gate type of PRB.

In a sediment remediation application, this same concept can be utilized in several different configurations.


Veritcal Funnel & Gate

To the right is a graphic that represents what we term a Vertical Funnel & Gate because the flow of groundwater upwelling through the sediment moves upward or in a generally vertical direction through the treatment gates or permeable reactive materials. As shown, the low-permeability AquaBlok® cap redirects the groundwater to the permeable treatment gates. This approach is particularly applicable to addressing sheen and ebullition issues in sediment.

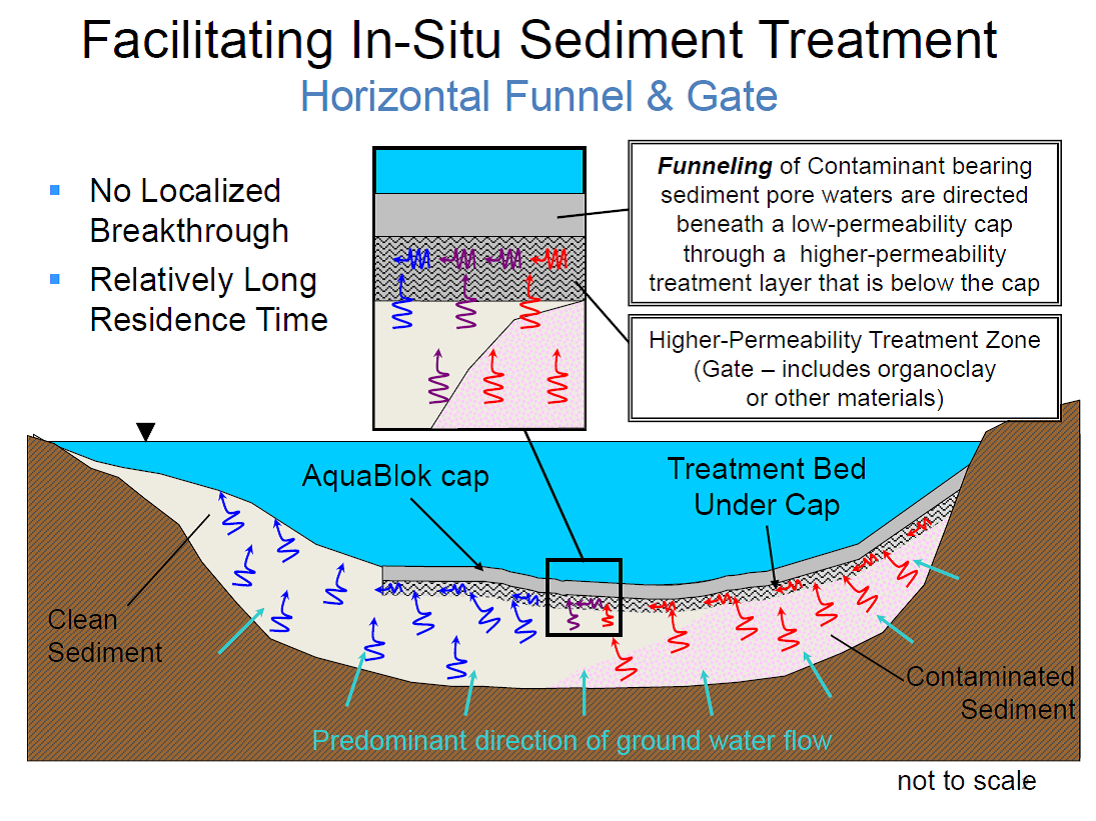

Horizontal Funnel & Gate

An alternative approach is what we refer to as a Horizontal Funnel & Gate. This approach is favored in situations where a shoreline seep zone is impacting sediment only a short distance from the upland area of concern. The general approach here is to place a permeable treatment or reactive layer of material over the sediment, which will act as a higher permeability preferential pathway for groundwater. This permeable treatment layer is then covered by a low-permeability layer of standard AquaBlok material. The goal is to provide a pathway for groundwater to follow that has a higher permeability than the underlying sediment. When the impacted groundwater follows this pathway, contaminants are removed by the reactive material prior to the water discharging from under the low-permeability layer into the water body, maximizing the contact time and utilization of the AquaGate®+ media.

An example of a project where an upland seep (arsenic) was addressed using a Horizontal Funnel & Gate approach is provided in the NY Canal Installation Profile.



Fully Permeable Reactive Barriers

Fully Permeable Reactive Barriers can also be constructed at the shoreline to intercept potential upland contamination migration. A conceptual model of such a PRB is shown in the accompanying graphic. To design the reactive layer, good information regarding groundwater flux, contaminant concentrations, and the adsorption kinetics of the reactive materials are required. Once this information is obtained, the layer is modeled to determine the thickness and likely break-through time, based on a set of design assumptions. Some amendment vendors, such as Cabot Corporation, can provide design services to facilitate design/media selection.
